Full-Automatic Cord Injection Machine

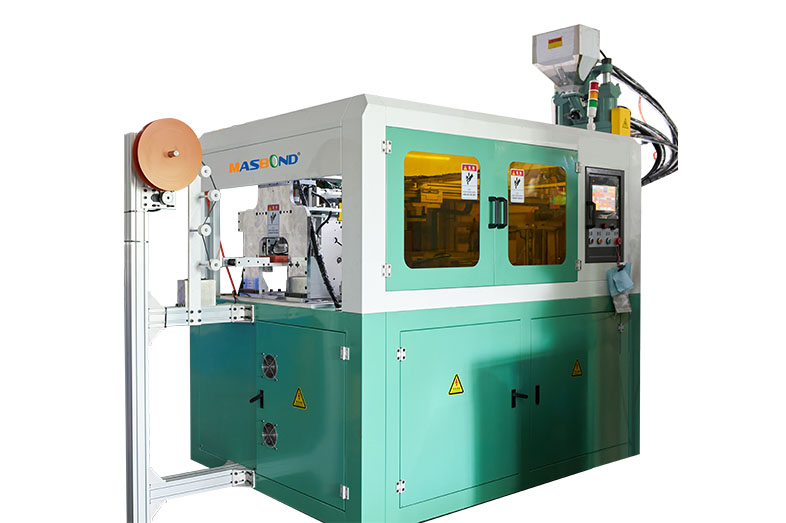

MASBOND Full-Automatic Cord Injection Machine MS-STM521
Injection molding for various non-cotton cap,cords,belts,etc.
MASBOND Full-Automatic Cord Injection Machine MS-STM521
Why Do We Use a Full-Automatic Cord Injection Machine?

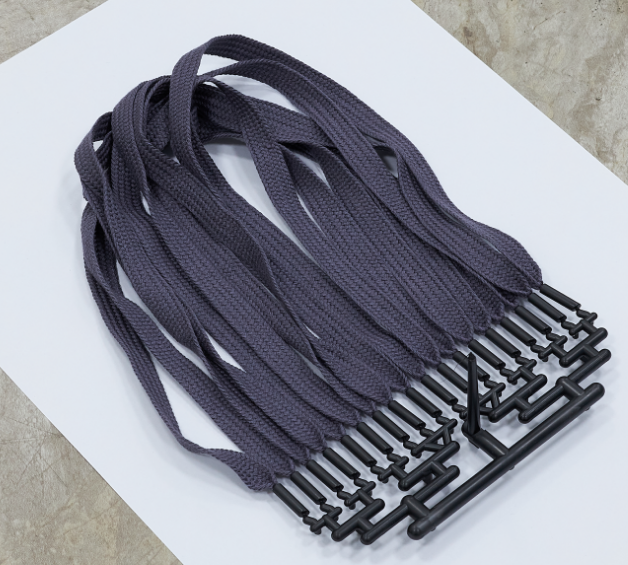

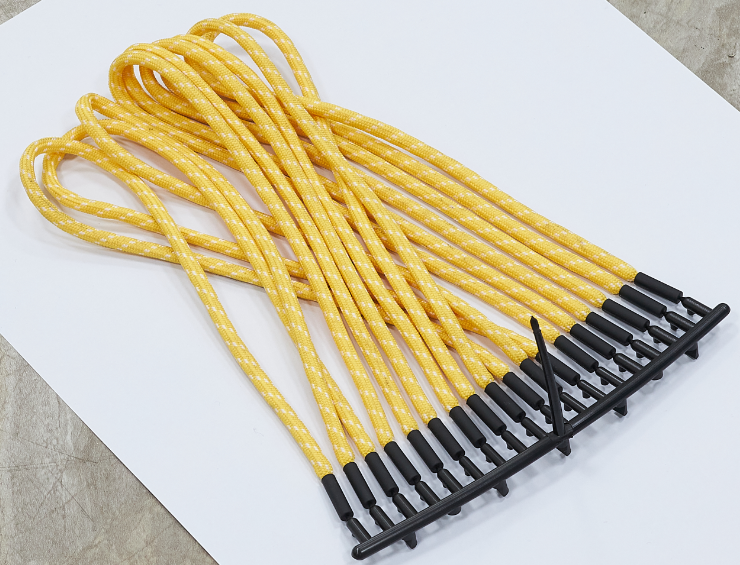

The fully automatic rope and strap injection molding machine is a type of injection molding equipment used for producing rope and strap products. It combines injection molding technology with automation control technology to efficiently manufacture various types of rope and strap products such as clothing belt, hoodie drawstrings, and sportswear straps.
Working Principle:
Firstly, plastic pellets or granular raw materials are added to the hopper of the injection molding machine. Then, through heating and pressure, the plastic raw materials are melted into a liquid state and injected into the mold. The mold shapes the rope and strap according to design requirements. Finally, cooling and solidification take place, and the finished product is removed from the mold.
Automation Control:
The fully automatic rope and strap injection molding machine utilizes advanced automation control systems to achieve automated operation throughout the production process. The automation control system can monitor parameters such as temperature, pressure, injection speed, etc., to ensure product quality and production efficiency.
High-Efficiency Production:
The fully automatic rope and strap injection molding machine features high-efficiency production capabilities, enabling continuous and stable production processes. By optimizing the automation control system, production efficiency can be improved, and production costs reduced.
Applicability:
The fully automatic rope and strap injection molding machine is suitable for producing various types of rope and strap products, including different materials, sizes, and shapes of ropes and straps.
Adjustability:
Injection molding machines typically have adjustable injection speed, temperature, and pressure to adapt to different types of plastic raw materials and product requirements.
Quality Control:
The fully automatic rope and strap injection molding machine is equipped with a quality control system that can monitor and adjust key parameters during the production process to ensure stable product quality.
Feature of Full-Automatic Cord Injection Machine MS-STM521：
Full automatic process, automatically pulling rope, pressing head, placing rope, injection molding, etc., reducing labor production cost.
High efficiency, about 8000 cords per day
Digital operation to ensure the accuracy of product quality.
Applicable length 360-2000mm.
Technical Parameters of MASBOND Full-Automatic Cord Injection Machine MS-STM521:
| Voltage | 220V | Power | 1.5-2Kw |
| Air Source | 0.5-0.6Mpa | Net Weight | 905kg |
| Ultrasonic Frequency | 15Khz | Operation Condition | Temperature Range 10-50℃， Humidity of the air 40`60%RH |
| Machine Size | 570*140*211cm | HS Code | 8479400000 |
