35KHz Ultrasonic Cutting&Bonding Machine Buying Guide｜Why Big Price Gap Between Different Ultrasonic Machines?

Ultrasonic Cutting&Bonding Machine Buying Guide:Why The Price Can Be Double?Key Components&How To Choose Wisely

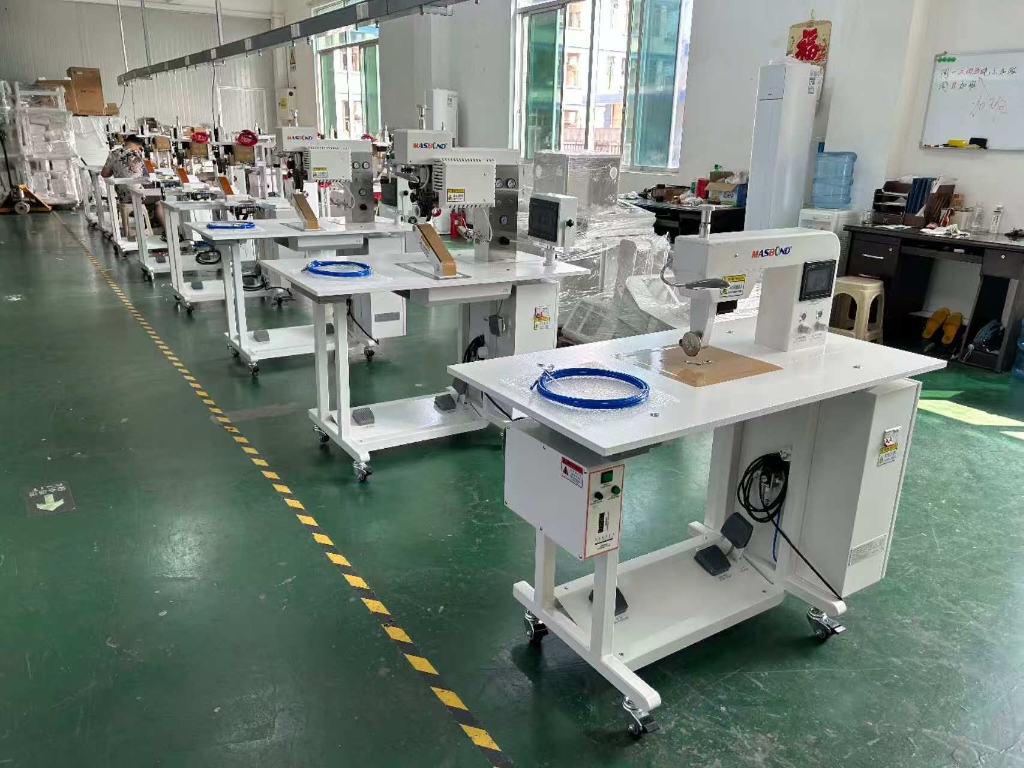

When you search for ultrasonic cutting and bonding machines on global B2B platforms,you will notice a confusing price range:some units are priced under$1400,while premium models cost twice as much.Outwardly they look nearly identical,with a table frame,operation panel and rotary cutting wheel.The huge price difference does not come from the outer cabinet,but the internal core components.

The three heart parts of an ultrasonic cutting&bonding system are transducer,digital generator and welding horn.The quality of these three components directly decides cutting precision,bonding consistency,noise level,continuous running stability and total service life.

1.Transducer—The Heart

Transducer converts high-frequency electric energy into micro mechanical vibration.For our 35KHz model,the horn vibrates 35,000 times per second.

✅Low-cost machine(under budget price):

Adopts low-grade piezoelectric ceramic with energy conversion efficiency only 70~80%.Most leftover power turns into heat.After half an hour continuous running,transducer housing gets extremely hot.Poor adhesive bonding on ceramic chips causes power attenuation within 3–6 months,easy burnout without temperature protection.

✅Premium MASBOND 35KHz transducer:

High-performance piezoelectric material,energy conversion efficiency over 95%.Low heat generation,housing temperature stays below 55°C even after 4 hours non-stop work.Built-in temperature sensor for automatic power protection.Pre-stress bolt assembly guarantees 5–8 years service life.

Quick test tip:Run the machine for 1 hour.If the transducer is burning hot,it is low-end configuration.Warm touch means high-quality transducer.

2.Digital Generator—The Brain

Generator supplies high-frequency power to the transducer and locks resonant frequency dynamically.

✅Cheap machine:

Analog self-oscillation circuit.You need manual re-tuning every time fabric thickness or material changes.Power output fluctuates heavily with grid voltage change.No fault code display for troubleshooting.Cheap single-side PCB and generic electronic components lead to high failure rate.

✅MASBOND DSP digital generator:

Automatic Frequency Tracking(AFC).It re-locks resonance within 0.1 second when fabric load changes,no manual adjustment required.Stable power output even with±15%grid fluctuation.Complete error alarm system for overheat,over-current,frequency loss.Industrial grade four-layer circuit board,MTBF over 10,000 working hours.

Quick test tip:Switch between different fabric thicknesses.If you have to stop production and re-adjust frequency,it is analog generator.

3.Welding Horn/Rotary Roller—The Hand

Horn is the executing part contacting fabric,transferring ultrasonic vibration evenly for cutting and seamless bonding.

✅Low-cost horn:

Made of ordinary carbon steel or regular aluminum alloy,no finite element simulation for vibration design.Amplitude unevenness up to 30%.Partial fabric fully cut while other sections remain uncut or over-melted.Easy fatigue crack,service life only 3–6 months.Fast surface abrasion creates burrs on cutting edge.

✅MASBOND titanium alloy horn:

TC4 titanium alloy material with hardening surface treatment.Every horn is simulated by FEA modal analysis to keep amplitude deviation within±5%.Smooth cutting edge without fabric fraying,uniform bonding strength.Titanium horn service life exceeds 2 years.Customized roller patterns for lace,curve cutting and different textile demands.

Quick test tip:Check cutting edge quality.Continuous smooth cut without fraying=qualified horn.

Other critical spare parts you cannot ignore

-Frame:Thin sheet metal on cheap models brings strong vibration resonance and high noise.MASBOND uses thick steel plate+vibration isolator to achieve ultra-silent operation.

-Pneumatic parts:Famous brand cylinders for stable pressure control.

-Control system:Touch screen operation,storage for multiple product parameter presets for quick product switch.

What is real"Ultra-silent"performance?

MASBOND 35KHz ultrasonic cutting bonding machine achieves ultra-low noise(<65dB workshop noise level)by three designs:high-efficiency transducer,precise digital frequency lock and full vibration damping frame.Workers can normally talk beside running machine,no hearing damage after long-hour operation.Cheap ultrasonic machines run at 75–85dB noise level like vacuum cleaners.

What does"2-year whole machine warranty"really mean?

Many suppliers only offer 1-year warranty for core parts.MASBOND provides 2-year full machine warranty.This promise comes from our confidence on component reliability.Before signing purchase contract,read warranty terms carefully:confirm if whole machine is covered,whether wearing parts are excluded,after-sales response time and travel responsibility for on-site service.

7-step practical selection checklist for ultrasonic cutting bonding machine

1.Confirm your application:fabric type,thickness,cutting width,daily production volume,continuous running requirement

2.Request free sample cutting test with your own raw fabric.Check consistency after 100 consecutive cuts

3.On-site trial run:test noise level,temperature rise after long run,automatic frequency adaptability for different fabrics

4.Verify specification sheet of core components:transducer,generator,horn material,pneumatic brand

5.Double-check warranty clauses in written contract

6.Audit manufacturer strength:R&D capacity,export experience,CE&ISO certifications

7.Calculate Total Cost of Ownership(TCO),not only one-time purchasing price.Cheap machine may cost far more on maintenance and production downtime in 5 years.

Final conclusion

The price gap of ultrasonic cutting&bonding machines essentially reflects the quality gap of three core assemblies:transducer,generator and horn.

-Budget low-price machine:suitable for small batch intermittent production,accept high noise,frequent breakdown and short service cycle

-MASBOND 35KHz premium ultrasonic cutting&bonding machine:built for mass continuous seamless apparel production.Higher initial investment brings stable quality,ultra-silent workshop environment,2-year full machine warranty and lower long-term running cost.

The best purchasing rule:test sample cutting first,verify running stability,and calculate total ownership cost for the whole machine life cycle.
