Long-arm Front Fly Cold&Hot Press Machine

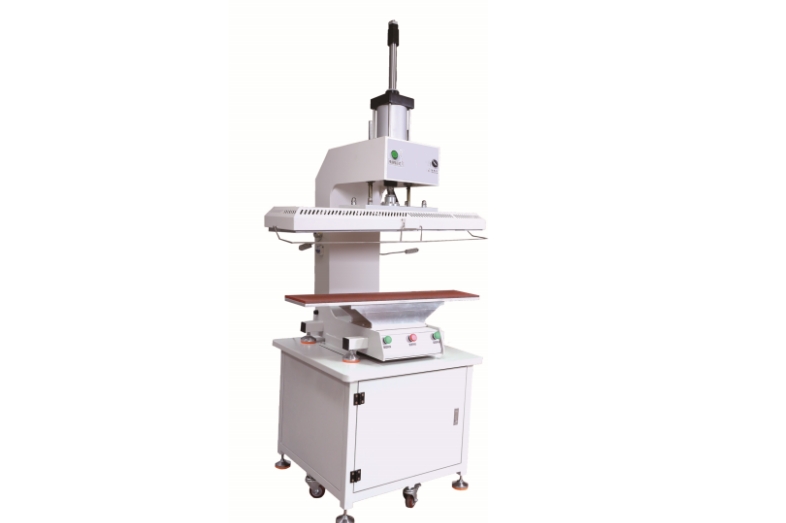

MASBOND Flat Cold & Hot Pressing Machine MS-PM1020
Suitable for waterproof and cold-proof garments and products made of pure PU, PU and PVC fabrics.
MASBOND Flat Cold & Hot Pressing Machine MS-PM1020
The clothing cold and hot press machine achieves various processing effects by applying heat and pressure to fabrics, tapes, and garments placed between heating plates.
Hot Pressing: In the hot pressing process, the heating plates are heated to a certain temperature, and then the garments or textiles to be processed are placed on the heated plates for pressing. This method is commonly used for processes requiring heat energy such as whole heat treatment, heat transfer printing, and thermal shaping.
Cold Pressing: Cold pressing involves applying pressure at room temperature without heating the plates. This method is used for processes that require pressure without the need for heat, such as pressing tapes and reinforcing garments.
Design Structure:The clothing cold and hot press machine typically consists of the following main components:
Pressure Plates and Heating Plates: Pressure plates apply pressure, while heating plates provide heat. Both are usuallyadjustable in temperature and pressure.
Control System: The control system regulates and monitors the temperature and pressure of the heating plates to ensure the stability and consistency of the processing results.
Conveyor System: The conveyor system transports the garments or textiles to be processed between the pressure plates and heating plates.
Safety System: The safety system includes safety doors, emergency stop buttons, etc., to ensure the safety of operators.
The advantages ＆ features of Cold and hot press machine:
Whole heat treatment: Used to make clothing fabrics smoother and neater.
Heat transfer printing: Directly transfers patterns or designs onto fabrics.
Garment reinforcement: Increases the strength of garments, such as pockets and cuffs.
Thermal shaping: Used to maintain the desired shape of certain fibers or blended fabrics.
High efficiency: Rapid heating and short processing cycles improve production efficiency.
Excellent processing results: High-quality processing effects, ensuring garments are smooth and patterns are clear.
Easy operation: Intelligent control system makes operation simple and convenient.
Wide applicability: Suitable for various fabrics and textiles, with a wide range of applications.
Strong adjustability: Adjustable temperature and pressure to meet different processing requirements.
Technical Parameters of MASBOND Flat Cold & Hot Pressing Machine MS-PM1020：
| Model | MS-24PM1020 | Voltage/Power | AC200V/2.2KW |
| Working area | 1000*200MM | Compressed air | 2~5. 5kg/CM² |
| Temperature range | Normal temperature~400℃ | Cylinder stroke | SC125x250mm |
| Timing | 0~999 | Machine Dimension | 820mm*1090mm*1550mm |
