Applicable to types of seamless garments for folding,overlapping, tapping and u-type folding, such as underwear, lingerie, T-shirt, barbie pants etc.

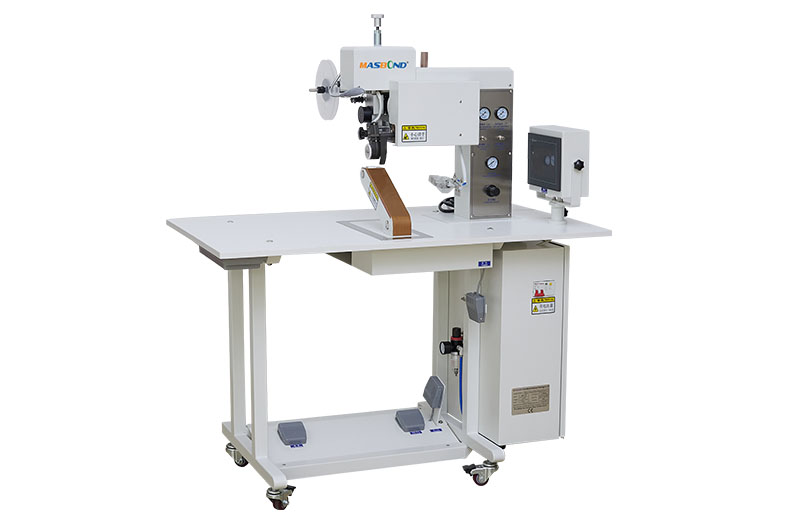

Overview of MASBOND Multi-function Bonding Machine MS-31P:
The Garment Adhesive Film Traceless Multi-Functional Bonding Machine is a multi-functional machine used in the garment manufacturing industry to attach adhesive film to garment edges without any traces to enhance the durability and aesthetics of the edges of the garments. In addition to adhesive film bonding, this machine performs a variety of other functions, making it a versatile production tool
Simple Operation:Touch screen control
Multi-function
Taping, Overlapping, Folding and U-type Wrapping optional in one machine.
Convenient to replace the mould.
Excellent Performance
Four heating devices on the top and bottom to make the bonding stronger.
Free pressure adjustment and independent speed control, suitable for all kinds of fabric.
High Automation
Automatic temperature control system, applied to a wide range of fabrics and adhesive films.
Automatic material feeding system, intelligent control of the tightness of the adhesive film according to tension.
Technical Parameters of MASBOND Multi-function Bonding Machine MS-31P:
Ultrasonic Frequency | N/A | Working Speed | 0-5m/min adjustable |
Power | 3.2Kw | Air Source | 0.5Mpa |
Voltage | 220V | Net Weight | 115kg |
Applicable Tape width | 20mm max | Machine Dimension | 122*70*40cm |
HS Code | 8451300000 |
Feel free to have a quote on our tapes, we will reply within 48 hours.
